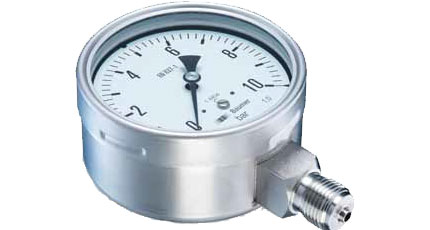

BAUMER BOURDON MCX7 Capsule Pressure Gauge
Nominal size: 150 mm
Measuring ranges: 0 ... 6 mbar to 0 ... 600 mbar
Low pressure measurements
High overpressure protection
Suitable for corrosive gases
BAUMER BOURDON MCX7 Capsule Pressure Gauge
Main Features
- For corrosive gasses and aggressive atmosphere
- Class 1.6 and 2.5 according to EN 837-3
- Wetted parts Stainless steel and Viton® FKM
- Option : case material 1.4404 (316L) for aggressive atmosphere
Application
- Laboratory & Medical
- Oil & Gas / Chemical
- Machinery
Technical Data Nominal size MCX5/MCF5 : 100 mm / MCX7/MCF7 : 150 mm Measurement range MCX5/MCF5 : 0 ... 16 to 0 ... 600 mbar Measurement range MCX7/MCF7 : 0 ... 6 to 0 ... 600 mbar Accuracy
(according EN 837-3) Class 1.6 (Ø 100)
Class 2.5 (Ø 150)
Certification
Approvals Certification Material certificate 3.1 EN10204 / Calibration certificate EN837-1
(5 points raising and 5 points falling)
