Electronic Pressure Transmitter Equipment
Baumer‘s electronic pressure transmitter and pressure switches prove their precision and reliability every single day in thousands of applications. Whether for high-speed applications in plastic injection molding machines or in food processing production or for heavy-duty use in the petroleum industry. Our customers have already been relying on this for decades.
BAUMER CombiPress™ (PFMN)
Pressure transmitter / switch
Industrial
Flush diaphragm
FlexHousing
DFON display
Programmable and 0-adjustment
BAUMER PBMH Hygienic
Hygienic pressure transmitter
Flush membrane with hygienic approval (3-A and EHEDG)
Surface roughness of process connection ≤ 0.8 Ra
BAUMER CombiPress™ PFMH
Pressure transmitter / switch
Hygienic
Flush diaphragm, 3-A and EHEDG certified
CombiView DFON display
CIP / SIP-able
Programmable and 0-adjustment
BAUMER PBMH autoclavable
Fully autoclavable pressure transmitter for common sterilisation processes
3-A and EHEDG certified (TriClamp 1 1/2")
Fully welded compact design
BAUMER PBMN Flush
Pressure transmitter with flush membrane
Excellent temperature charateristics
Robust stainless steel housing
Fully welded design
BAUMER PBMN Industrial Low Pressure
Industrial pressure transmitter
Excellent temperature charateristics
Robust stainless steel housing
Fully welded version
BAUMER PDRx
Fully welded version
Robust stainless steel housing
High overpressure resistance
Excellent long term stability
Response time ≤ 1 ms
BAUMER PBMN Industrial High Pressure
Industrial pressure transmitter
Excellent temperature charateristics
Robust stainless steel housing
Fully welded design
BAUMER Y91 pressure transmitter
Industrial pressure transmitter
Robust stainless steel housing
Intrinsically safe version
BAUMER Pressure transmitter for general industrial applications (PBSN)
Industrial pressure transmitter
High level of modularity
Robust stainless housing
Abrasive and chemical resistant
BAUMER CTL / CTX General Purpose Pressure Transmitter
Pressure transmitter for general air and gas applications
-1 ... 0 bar up to 0 ... 200 bar
Stainless steel or brass construction
Compact design
BAUMER PBM4 Hydraulic Pressure Transmitter
Pressure transmitter for hydraulic applications
0…25 bar up to 0…1000 bar
Robust stainless steel housing
Compact design
Fully welded version

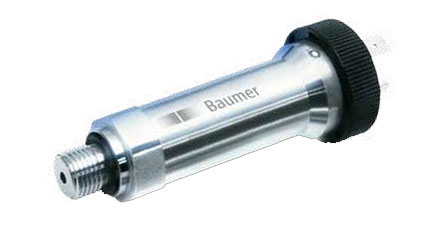

BAUMER PBCN Pressure Transmitter with High Over Pressure
Capacitive ceramic sensor High overpressure resistance Robust stainless housing Abrasive and chemical resistant
What is a Pressure Transmitter?
A transmitter is a device that converts a reading from a sensor or transducer into a standard signal and transmits that signal to a monitor or controller. Transmitter types include: Differential transmitters, Flow transmitters, Temperature transmitters, and Level transmitters
Pressure transducers are an advanced form of pressure sensor element. The simplest form of an electrical pressure measurement system is the pressure sensor. It is the pressure sensor which changes the physical variable “pressure” into a quantity that can be processed electrically. A pressure transducer is the next level of sophistication. In a pressure transducer, the sensor element and housing are in electrical contact and have a pressure connection.
Typical output signals from pressure transducers are between 10 mV and around 100 mV, depending on the sensor type. These signals are not standardized, however, nor are they compensated. With thin-film type pressure transducers it is customary for just the sensor element to be welded to the pressure connection and then bonded electrically. Piezoresistive pressure transducers, on the other hand, require far more production steps since the semiconductor sensor element has to be protected from the effects of various media by a chemical seal.
What are The Different Types of Pressure Transducers?
Through advancement in sensor technology which brings the industry from the mechanical age to the electronic age, several types of sensor technology developed throughout the years. They are Piezoresistive Sensor, Ceramic Thick Film Sensor, and Metal Thin Film Sensor.
Resistive pressure measurement (ceramic thick-film and metal thin-film technology)
In ceramic thick-film and metal thin-film technology, four resistors are interconnected to create a Wheatstone bridge. During pressurization, the resistors are exposed to the highest strain in the diaphragm center while the strongest compression is found in the edge areas. In ceramic and thin-film cells, the measuring membrane acts at the same time as media separating membrane. No internal transmission fluid is required.
Piezo-resistive pressure measurement (silicon semiconductors)
In semiconductor materials, the change in the specific resistance and thus of the signal results from the variable mobility of the electrons in the crystalline structure. This mobility reacts to mechanical load. The sensitive silicon chip and the process medium are separated by a stainless steel membrane (encapsulation). Depending on the application, paraffin or silicone oil is used as transmission fluid for internal pressure transmission.
Why Choose Baumer Transmitters?
The Baumer Process Instrumentation range includes a wide choice of pressure, temperature, level, analysis and force measurement instruments. Our sales staff understands your industry applications and so are always able to advise and offer you the correct product for your measurement requirements. No range of products will ever be large enough to provide the optimal solution for every application. Often there are requirements that change or move towards a better concept that cannot be satisfied by existing products. This is why our development engineers are able to work closely with customers to design and offer the very best customized solution. This flexibility includes special mechanical housings or adaptations to existing sensor designs. This ability to offer our customers an innovative solution offers them a significant competitive advantage.
